Uses and Features
The Vortex Compact Scrubber is a wet dust and particle extraction system. The Compact model comes with an integral centrifugal fan installed inside an acoustic enclosure on top of the scrubber, reducing noise levels to approximately 70 dB.
The scrubber is suitable for particulate contaminants with the following characteristics: explosive, flammable, moist, wet, sticky, oily, and high temperature. These characteristics prevent dry filtration using conventional filter media, as the filters would clog, leading to high operational costs or posing an explosion risk.
The main industrial applications for Vortex systems include dust extraction from metal polishing machines, extraction from explosive material production processes, extraction from machining operations, and extraction from wet and hygroscopic chemical production processes.
The scrubber is particularly suited for customers seeking space-saving solutions, as the fan is located on top of the scrubber and the low noise level allows installation even within the production hall.
Technical Specification
Models:
- W-400-C supplied with a built in Acoustically Enclosed centrifugal fan model IB45\560 with a high eff 10 hp motor for flow rates up to 4,000 m³/h.
- W-600-C supplied with a built in Acoustically Enclosed centrifugal fan model IB50\560 with a high eff 15 hp motor for flow rates up to 6,000 m³/h.
- W-800-C supplied with a built in Acoustically Enclosed centrifugal fan model IB56\560 with ahigh eff 20 hp motor for flow rates up to 8,000 m³/h.

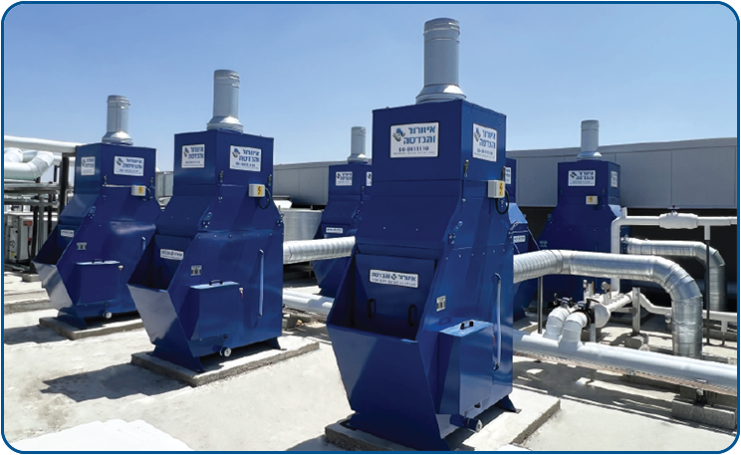

- For higher flow rates, multiple units can be combined in parallel.
Building materials:
- Galvanized and painted steel.
- Stainless steel 304, stainless steel 316.
Options for level control:
- Level control with electrodes.
- Mechanical level control with a float (standard).
All components of the Vortex Scrubber are laser-cut and CNC-bent, the scrubber body is fully welded, and constructed from galvanized steel sheets or thick stainless steel sheets, providing mechanical strength, HEAVY DUTY construction, and long-term process durability.
Benefits for VORTEX users
- Integral fan installed at the top of the unit inside an acoustic enclosure.
- No consumable parts.
- High filtration efficiency for particles larger than ten microns.
- Simple and convenient operation, saving time and money on spare parts.
- Fan located on the clean-air side of the scrubber.
- Large service door providing easy access for maintenance.
- Automatic level control.
