Uses and Features
The Vortex Scrubber is a wet dust and particle extraction system. Air is drawn into the Vortex Scrubber using an external industrial fan, sized to match the airflow and pressure drop requirements of the system.
The scrubber is especially suitable for particulate contaminants that are explosive, flammable, moist, wet, sticky, oily, or at high temperatures.
These characteristics prevent the particles from being filtered dry using conventional filter media, as the filters would clog, leading to high operational costs or posing an explosion risk.

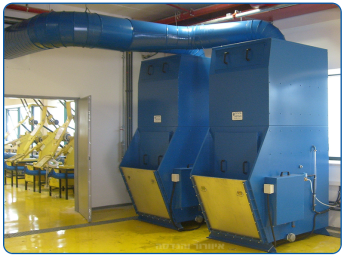

The primary industrial applications for Vortex systems include dust extraction from metal polishing machines, extraction from explosive material production processes, extraction from machining operations, and extraction from wet and hygroscopic chemical production processes.
Technical Specification
Models:

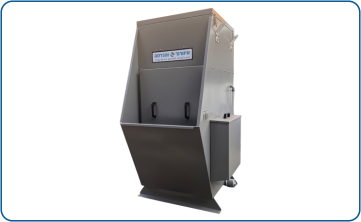

- W-400 for a capacity of up to 4,000 m³/h.

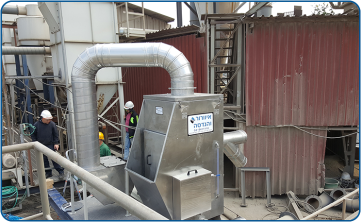

- W-600 for a capacity of up to 6,000 m³/h.

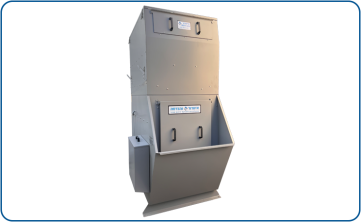

- W-800 for a capacity of up to 8,000 m³/h.

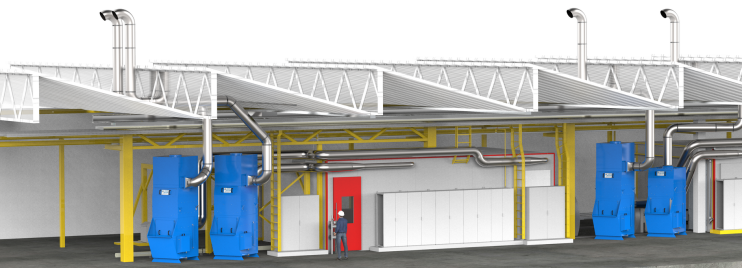

- For higher capacities, multiple units can be operated in parallel.
Building materials:
- Galvanized and painted steel.
- SS304, SS316.
- Acid-resistant polypropylene plastic.
Options for level control:
- Mechanical level control with a float (standard).
- Level control with electrodes.
All components of the Vortex Scrubber are laser-cut, the scrubber body is fully welded, and constructed from galvanized steel sheets or thick stainless steel sheets, providing mechanical strength, HEAVY DUTY construction, and long-term process durability.
Benefits for VORTEX users
- High filtration efficiency for particles larger than ten microns.
- No consumable parts.
- Simple and convenient operation, saving time and money.
- Fan located on the clean-air side of the scrubber.
- Large service door providing easy access for maintenance.
Automatic level control.
