Uses and Features
The VENTURI SCRUBBER is a gas and particle absorption system designed for the separation of sub-micron particles, smoke, and gases under conditions of high temperature, high humidity, explosive risk, wet and sticky dust, and corrosive environments. It is particularly used where dry filtration is not feasible due to risks of clogging, fire, chemical failure, or explosion.
The Venturi Scrubber can capture and filter emissions from furnaces, dryers, reactors, and incineration units, as well as serve as a primary absorption stage for chemical vapor emissions. It can also act as a gas cooler when combined with a Quencher for adiabatic gas cooling, enabling efficient particle capture and subsequent treatment of chemical vapors (integrated systems).
Scrubber design is carried out using specialized process software for chemical calculations, FLUID DYNAMICS, thermodynamics, material strength, and corrosion resistance, requiring extensive process engineering expertise and experience.

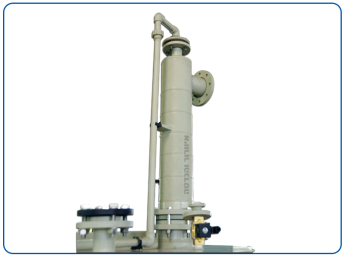

All components of the VENTURI SCRUBBER are manufactured using advanced and highly precise processing technologies. Construction materials are selected based on customer and process requirements. The unit can be built from steel or stainless steel, and for cold chemical or corrosive processes, it can be made from polypropylene, PVDF, or fiberglass.
User Benefits
- Design, manufacturing, and installation of complete systems including all required components, under the full responsibility of Ventilation & Engineering plant engineers.
- Very high particle separation efficiency – compliant with the latest emission standards.
- Continuous, reliable, and safe operation.
- HEAVY DUTY industrial construction.
- The unit’s design allows for easy and convenient operation and maintenance.
- Significant cost savings in operation and usage.
- Construction materials and scrubbing solutions are tailored to the process requirements.
- Extensive engineering experience in process industries, providing solutions for a wide range of emission problems and sub-micron particle and smoke filtration.
- Each Venturi unit is individually designed for each customer according to the specific process requirements and to ensure compliance with the latest emission standards.
