Uses and Features

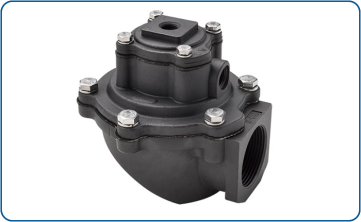

Ventilation & Engineering specializes in designing and supplying industrial filtration systems and provides, among other components, valves and solenoids for filtration systems. The valves are high-quality European-made products, designed for reverse air supply (Reverse Pulse Jet Valves) in industrial dust filtration systems.
The threaded valves are manufactured from high-pressure die-cast aluminum with an anodized coating for corrosion protection, and are also available in stainless steel versions for more demanding applications.
The valves can be installed at any angle, except inverted or downward-facing.
Technical Specification
Diameters : ¾", 1", 1½", 2", 2½".
Solenoid operating voltage : 24 VDC, 110 V, 220 V.
Operating pressure : 0.5–7.5 bar.
Connection type : threaded; can also be supplied with a flanged connection.
Explosion protection : optional explosion-proof solenoid boxes for ZONE 1 and ZONE 2.
Material : die-cast aluminum or stainless steel.

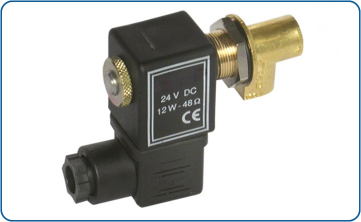

Operation : built-in solenoid actuator or remote pneumatic connection.
Temperature ranges by diaphragm type:
- Nitrile : from -40°C to 82°C
- Viton : from -29°C to 232°C
User Benefits
- Extremely fast opening and closing.
- High flow rate with proven reliability.
- Easy installation and maintenance.
- Springless design reduces wear and ensures quiet operation.
- High stock availability.

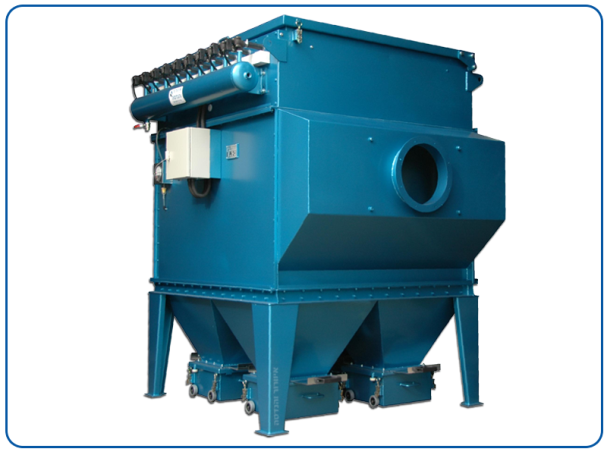

- Valves compatible with cartridge or bag filter systems.
- Industrial durability ensured by HEAVY DUTY construction and robust materials.
- Precision engineering tailored to customer requirements.
