Uses and Features

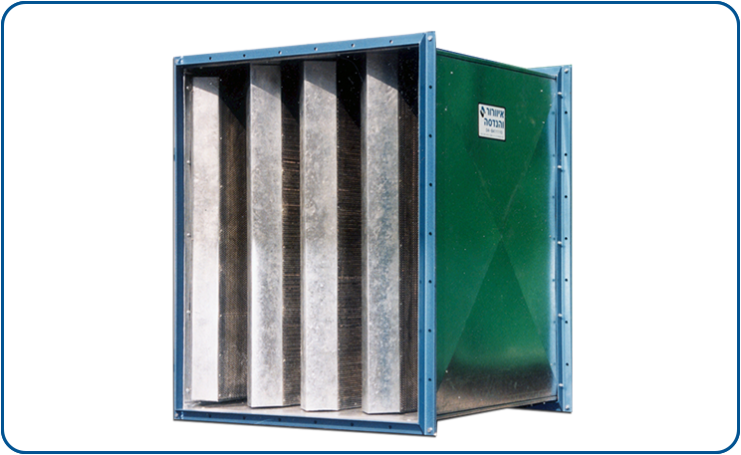

Galvanized or stainless steel (304/316) silencers with internal baffles, designed to reduce noise levels up to 40 dB at the inlets and outlets of blowers, fans, compressor rooms, and generators. Sizes are customized to airflow requirements according to engineering design.
Technical Specification
- Dimensions : 300×300 – 2000×2000 mm
- Lengths : 500–4000 mm
- Materials : Galvanized steel, stainless steel 304/316, and plastic
- Baffle thickness : 50, 75, 100, 200 mm
- Noise reduction efficiency : 10–40 dB
User Benefits
- Diameter transitions at inlet and outlet according to customer requirements.
- Optional coating for enhanced corrosion resistance.
- Maximum noise reduction across a wide frequency range.
- Galvanized, rust-resistant construction.
- High-density rock wool for optimal acoustic efficiency.
- Reinforced HEAVY DUTY structure.
- Customized for process requirements with precise engineering design.
