Uses and Features

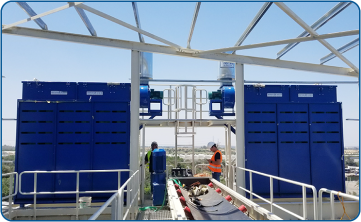

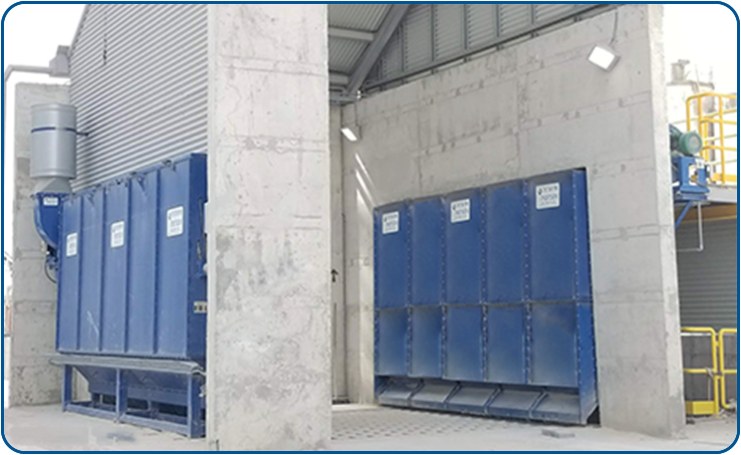

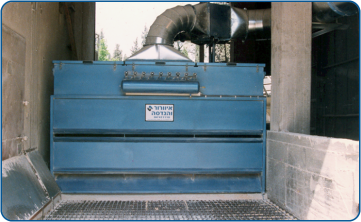

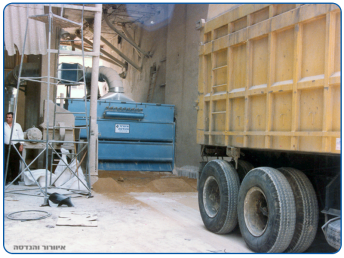

Suction from a receiving pit is carried out using a SW series suction and filtration system. This system includes a backward-curved centrifugal fan selected according to the required flow and pressure, and a dust filter wall with automatic cyclic cleaning using compressed air. The function of the system is to suction the dust-laden air that spreads during the unloading of the truck into the plant's receiving pit, thereby preventing the dispersion of pollutants throughout the plant and the environment. These systems are used in industries such as food, minerals, raw material processing, and any plant with a receiving pit. The systems are designed according to the dimensions of the receiving pit by the engineering team of Ventilation and Engineering Company and are customized for each client.
All parts of the system are laser-cut, the filter body is fully welded, and it is constructed from steel sheets / 316 stainless steel / 304 stainless steel with thicknesses of 3-5 mm, providing mechanical strength, an EXTRA HEAVY DUTY structure, and process durability over time.
Method of cleaning the elements
- The ROTARY-JET (nozzle) method is the most efficient cleaning method in the world. The nozzle allows for perfect air distribution along the entire filter, with uniform cleaning pressure that enables each pleat in the filter to be cleaned individually and thoroughly. Using the nozzle significantly extends the filter's lifespan, considerably reduces noise levels, and allows for substantial savings (up to 70%) in compressed air consumption compared to other cleaning methods.
- The PULSE-JET method with a GO-CO nozzle provides efficient and uniform cleaning along the entire filter during the filtration process. This method prevents areas from remaining uncleaned in the filters, which can occur when using a regular PULSE-JET cleaning method.
Standard models: SW-40 - SW-3.
Capacities: 1,500 - 40,000 m³/h.
Width: 1,500 - 10,000 mm.
Advantages for the user of a suction and filtration wall
- System construction according to the structure and process requirements of the client.
- High filtration efficiency, capable of handling high dust loads and meeting emission standards.
- Creating a safe working environment for employees.
- Continuous, reliable, and safe operation without disrupting work processes.
- The facility structure allows for easy and convenient operation and maintenance.
- Heavy industrial structure, EXTRA HEAVY DUTY.
- Significant cost savings on spare parts.
- Filtration materials with German technology, washable with water.
