Uses and Features

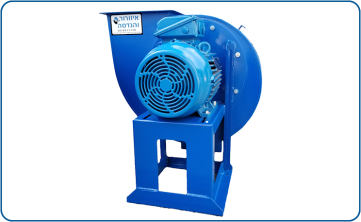

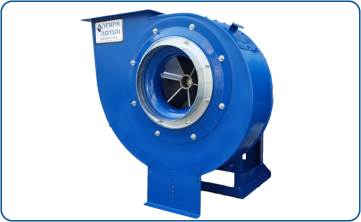

The CBT blower is a blower built in a heavy-duty industrial structure, welded with an open radial accelerator with six straight blades. The blower is designed to operate under severe process conditions and is suitable for working with air, vapors, and gases when the airflow contains dust and particles at very high concentrations.

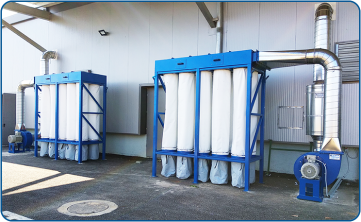

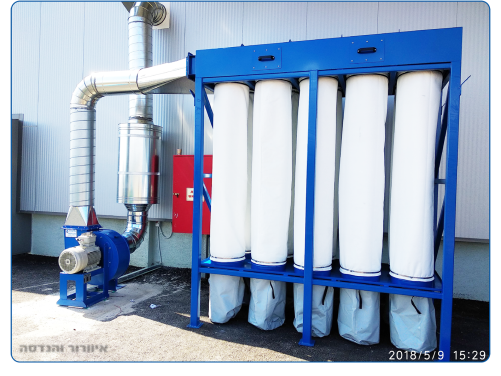

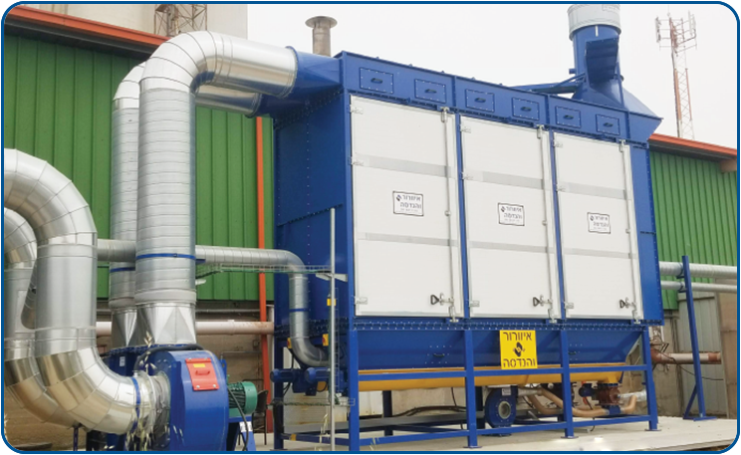

The blower is used for dust and contaminant suction and filtration systems, transporting various raw materials, conveying solids, sawdust, wood pieces, and long parts that may clog a closed centrifugal impeller.
Technical Specification
- Impeller diameter: 250-1,250 mm.
- Drive: Direct, belt, direct with coupling.
- Air flow: 600-55,000 m³/h.
- Static pressure: 50-500 mmH₂O.
- Construction materials: Steel, 304\316 Stainless steel, spark-proof aluminum.
- Motors: High-efficiency motors adapted for variable frequency operation, option for explosion-proof motors ZONE1 and ZONE2.
- Special additions: Motor rain cover, inlet and outlet silencers, Spark protection, Shat seal, vibration mounts, maintenance inspection door, drainage, inlet and outlet heavy duty flexible connections and diameter transitions.
All fan components are made of thick sheet metal cut with laser cutting, the fan impeller is fully welded to provide mechanical strength and a HEAVY DUTY structure. The heavy industrial structure allows significant cost savings in operation and maintenance expenses.
Advantages for users of ventilation fans and engineering
- Process durability made possible by an especially heavy industrial structure and durable construction materials.
- Option for special coating up to C5M protection level.
- Cost savings made possible by high efficiency and process durability.
- Simple maintenance made possible with dedicated drainage openings.
