Uses and Features

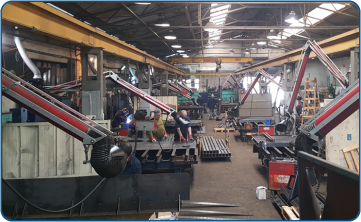

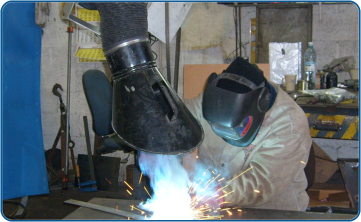

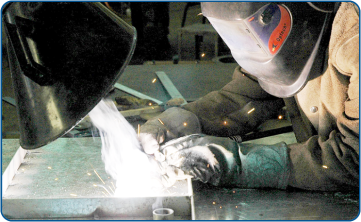

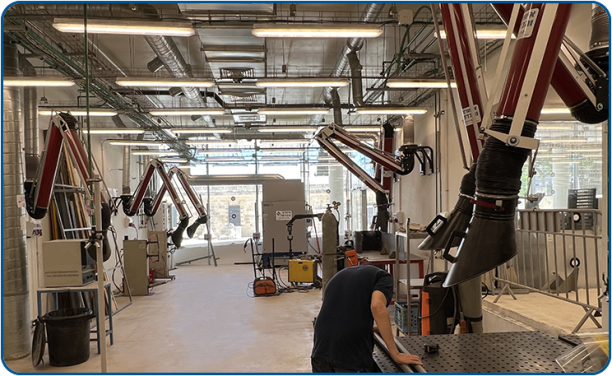

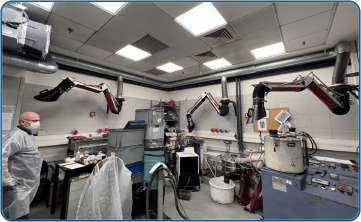

The articulated extraction arm, manufactured by AIRBRAVO, Italy, can be stabilized at any point and direction in space and is renowned for being reliable, efficient, and highly user-friendly. These arms capture contaminants directly at the source before they spread into the work environment, making them the optimal solution for maintaining a clean and safe workspace. The arm is used for extracting welding smoke, dust from grinding and polishing processes, odors, vapors, gases, and various industrial workstations.
Technical Specification
- Diameters : 100, 125, 160, 200, 250 mm.

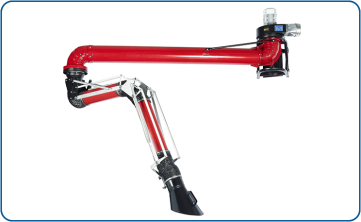

- Lengths : 1–4 meters, with extension options up to 8 meters.

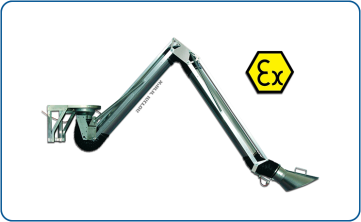

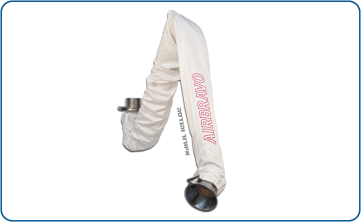

- Construction materials : galvanized steel coated with epoxy, stainless steel 304, stainless steel 316, plastic, explosion-proof versions available.

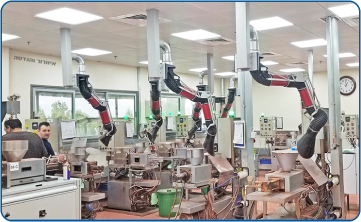

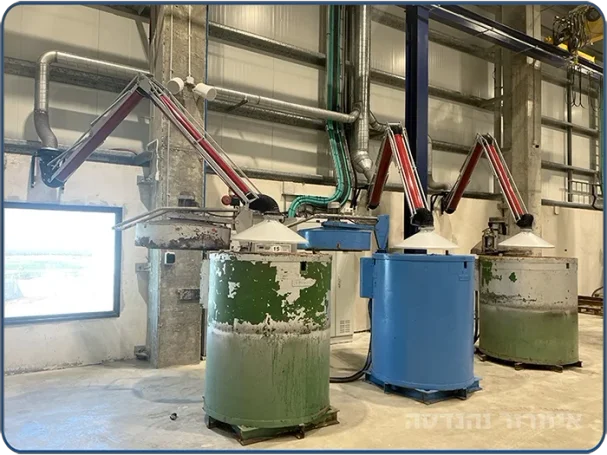

- Installation options : wall-mounted, ceiling-mounted, or connected to a stationary or mobile filtration system.
Stabilization System Structure

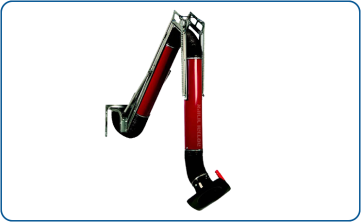

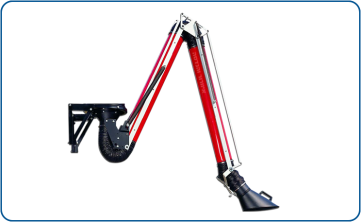

The extraction arms feature rigid pipes made of steel or stainless steel, along with external stabilization arrangements in a pantograph design, equipped with 4–6 springs and dozens of small friction points, providing maximum stability to the unit.
User Benefits
- Easy to operate and highly user-friendly.
- The product is designed for industrial use and constructed from suitable high-quality materials.
- Excellent cost-to-benefit ratio.
- Very low operating costs compared to alternative technologies.
- Creates a safe working environment for employees.
