Uses and Features

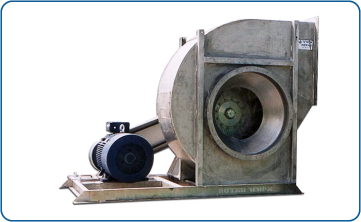

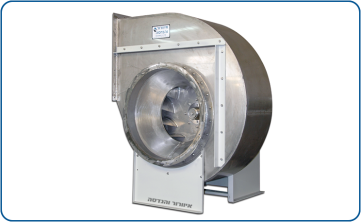

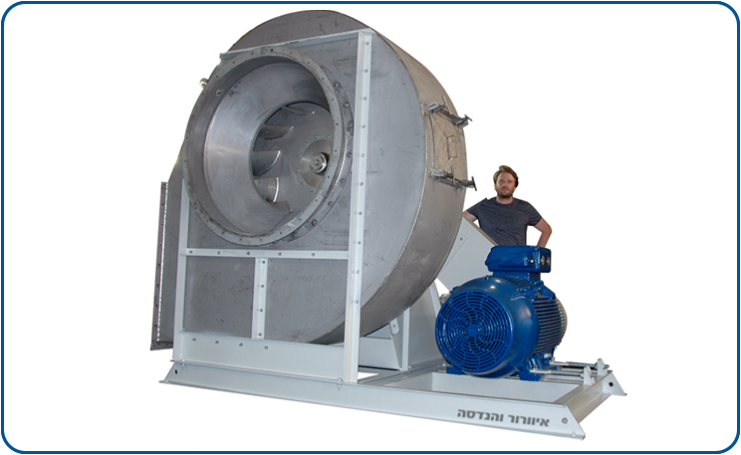

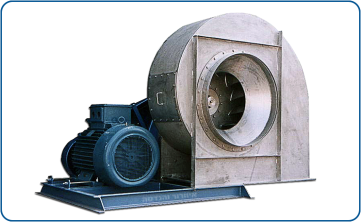

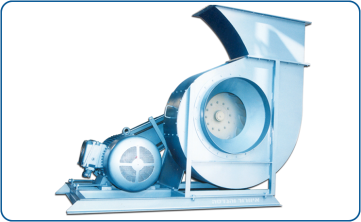

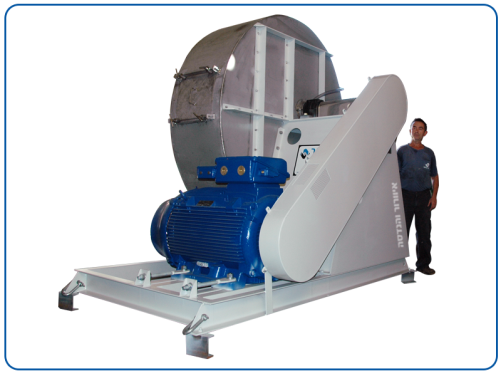

The RTB blower is a HEAVY DUTY industrial centrifugal blower with a RADIAL TIP BLADE booster, built with a fully welded industrial structure and featuring ten blades. The blower is designed for high-efficiency operation and is suitable for air, steam, and gas applications containing low to medium concentrations of dust and particles. Its high efficiency and industrial design allow significant cost savings in operating and maintenance expenses. Blowers of this type are used for general ventilation and for suction and filtration systems for various contaminants at medium and high pressures in combination with high flow rates.
Technical Specification
- Impeller diameter: 600-1,500 mm.

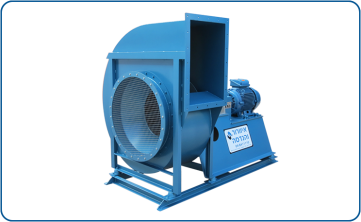

- Drive: Belts, direct with coupling.
- Capacity: 5,000-250,000 m³/h.
- Static pressure: 100-1,000 mm.
- Construction materials: Steel, 304\316 stainless steel, Wear resistance hard steels.
- Motors: High-efficiency motors suitable for operation with a frequency converter, option for explosion-proof motors ZONE1 and ZONE2.
- Special additions: Motor rain cover, inlet and outlet silencers, Spark protection, Shat seal, vibration mounts, maintenance inspection door, drainage, inlet and outlet heavy duty flexible connections and diameter transitions.
All blower parts are laser-cut, the blower body is fully welded and made of thick sheets providing mechanical strength and an EXTRA HEAVY DUTY structure. The impeller blades are fully welded to the impeller body, providing additional mechanical strength.
Advantages for users of ventilation fans and engineering
- Process durability made possible by an exceptionally heavy industrial structure and durable construction materials.
- Option for special coating with protection level up to C5M.
- Cost savings made possible by high efficiency and process durability.
- Simple maintenance enabled by dedicated drainage openings.
