Uses and Features
PB fan series are industrial centrifugal fans designed to operate at high pressures. The fans are built with a HEAVY DUTY industrial design and are suitable for continuous process operation, under extreme conditions of pressure, temperature, dust, and corrosion. PB type fans are used for high-pressure suction and filtration systems, edge extraction systems, pneumatic conveying and waste removal systems, and 'air knife' systems. A fan can be supplied with an open radial booster PBM for air intake with a high particle load and waste conveying.
Technical Specification

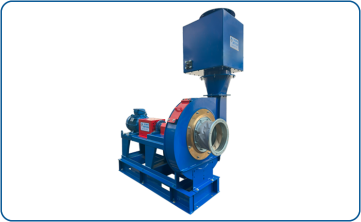

- Models: PB, PBP, PBG, PBN.
- Impeller diameters: 250-2,000 mm.
- Drive: direct, belt, direct with coupling.
- Capacities: 100-60,000 m³/h
- Static pressure: 150-2,500 mm H₂O

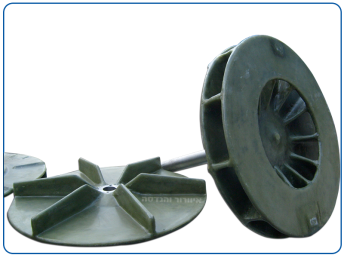

- Construction materials: steel, Stainless steel, super duplex, and spark-resistant aluminum.
- Motors: high-efficiency, suitable for operation with variable frequency drive; option for explosion-proof motors ZONE1 and ZONE2.
- Special features: Motor rain cover, inlet and outlet silencers, Spark protection, Shat seal, vibration mounts, maintenance inspection door, drainage, inlet and outlet heavy duty flexible connections and diameter transitions.
All fan parts are laser-cut, fan body is fully welded and made of thick sheets providing mechanical strength; HEAVY DUTY construction for small models and EXTRA HEAVY DUTY construction for large models. Impeller blades are fully welded to the impeller body, adding additional mechanical strength.
Advantages for users of ventilation fans and engineering
- Process durability enabled by the HEAVY DUTY structure and durable construction materials.
- Option for painting with a special paint system up to C5M protection level.
- Cost savings made possible by high efficiency and process durability.
- Simple maintenance facilitated by dedicated drainage openings.
