Uses and Features

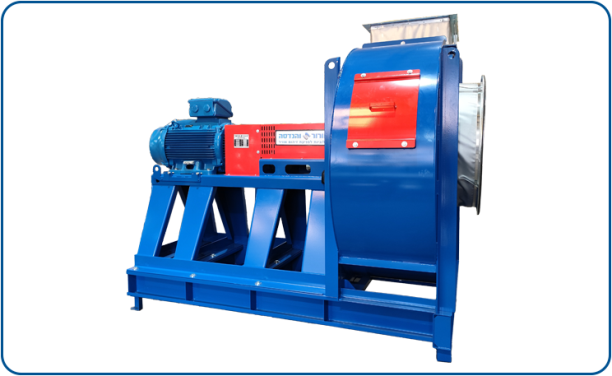

The AH series centrifugal fans are backward-curved blade fans with ten blades. The fans are manufactured in a fully welded industrial structure, EXTRA HEAVY DUTY. The fan has high efficiency and is mainly used in situations requiring medium to high pressure and where the air stream contains low to medium concentrations of dust and particles, such as: suction from extraction and filtration systems, suction from air supply systems with especially long duct runs, suction from machines, and so on.
Thanks to the high efficiency of the fan and its construction, significant cost savings in operational and maintenance expenses are possible.
Technical Specification

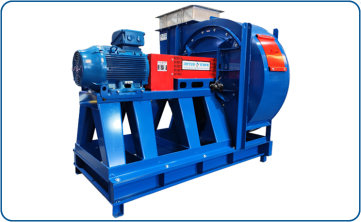

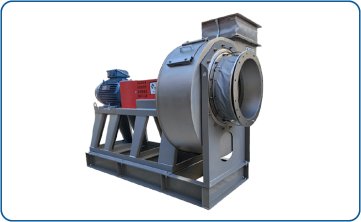

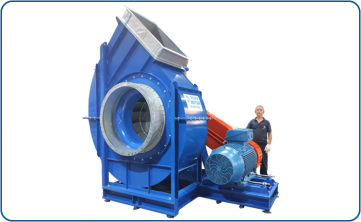

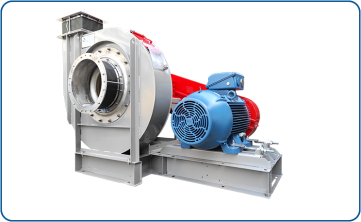

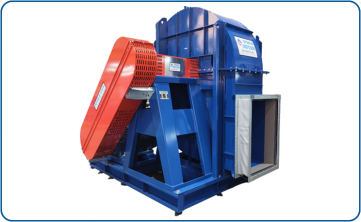

- Models: AH, AHM, AHR, AHF.
- Impeller diameters: 300-2,000 mm.

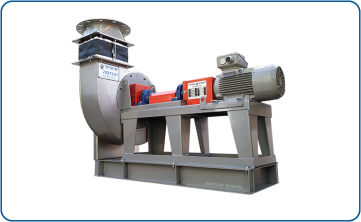

- Drive: direct, belt, direct with coupling.
- Air flow: 300-200,000 m³/h.
- Static pressure: 100-2,000 mm H₂O.
- Construction materials: Steel, 304/316 stainless steel, spark-resistant aluminum.
- Motors: High-efficiency motors designed for operation with a frequency converter, option for explosion-proof motors ZONE1 and ZONE2.
- Special additions: Motor rain cover, inlet and outlet silencers, Spark protection, Shat seal, vibration mounts, maintenance inspection door, drainage, inlet and outlet heavy duty flexible connections and diameter transitions.
All blower parts are laser-cut, the blower housing is fully welded and made from thick sheets providing mechanical strength and a HEAVY DUTY structure for small models and an EXTRA HEAVY DUTY structure for large models. The accelerator blades are fully welded to the accelerator body, providing additional mechanical strength.
Advantages for users of ventilation fans and engineering
- Process durability thanks to the HEAVY DUTY construction and durable building materials.
- Option for special coating up to protection level C5M.
- Cost savings due to high efficiency and process durability.
- Fan suitable for the ventilation and air conditioning market in industrial buildings.
- Immediate supply from stock.
