Horizontal Chemical Scrubber

Uses and Features

The HORIZONTAL CROSS FLOW SCRUBBER gas absorption unit is designed for the treatment and neutralization of acidic and alkaline gases and vapors in chemical plants, pharmaceutical factories, chemical reactor exhausts, coating baths, and as an emergency system for hazardous gas leaks, such as ammonia leaks in refrigeration units. It is also used for odor control in various industries and wastewater treatment facilities. The horizontal design allows installation in locations with height restrictions.

Scrubber design is carried out using specialized process engineering software for chemical calculations, FLUID DYNAMICS, thermodynamics, material strength, and corrosion resistance, requiring extensive process engineering knowledge and experience.

The unit includes a water tank, inlet and outlet ports, filling and draining ports, packing media, nozzles, pumps, flow meters, capacity meters, water piping, and a water level control system. Optional systems can include pH control, conductivity control, REDOX (oxidation-reduction) control, and pre-cooling adiabatic units QUENCHERS for treatment of emissions from thermal processes.

Columns are manufactured from extra-thick polypropylene, providing mechanical strength, corrosion resistance, and HEAVY DUTY construction suitable for process industry applications.

Additional standard construction materials: PVDF, fiberglass, PVC, or stainless steel (304/316).

User Benefits

Design, manufacturing, and installation of complete systems including all required components under the full responsibility of Ventilation & Engineering plant engineers.
Extremely high absorption efficiency – compliant with the latest emission standards.
Continuous, reliable, and safe operation.
HEAVY DUTY industrial construction.
The unit’s design allows for easy and convenient operation and maintenance.
Significant cost savings in operation and usage.
Construction materials, packing media, and scrubbing solutions are tailored according to process requirements.
Extensive engineering experience in the process industry and in solving a wide range of emission and odor challenges.
The absorption column is custom-designed individually for each client, based on the specific process requirements and compliance with the latest emission standards.

Installation Gallery

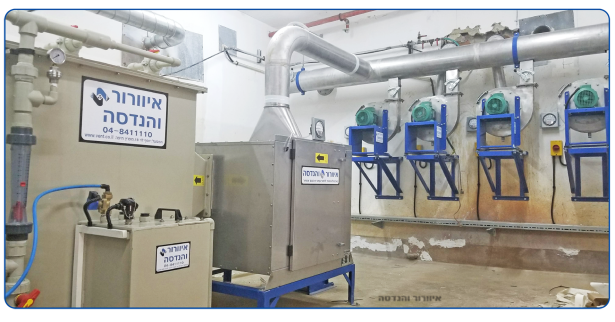

Horizontal scrubber absorption column with a primary particle filter

Horizontal Chemical Scrubber

Uses and Features

User Benefits

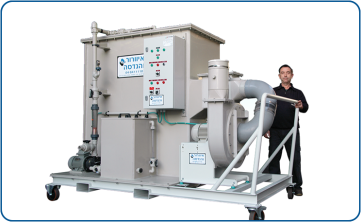

Mobile horizontal scrubber including electrical panel and full PH control

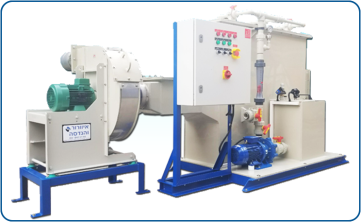

Horizontal scrubber for treating acidic vapors, including full electrical panel and control system

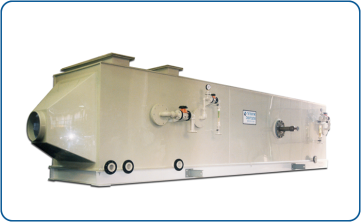

Horizontal scrubber for treating basic vapors

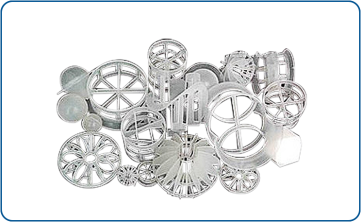

Filler material for scarab
