Uses and Features
HEPA filter capable of capturing dust and particles down to 0.3 microns with an absolute efficiency of 99.97%. This filter serves as a final stage in filtration systems where there is a risk of exposure to contaminants even at very low concentrations, such as in the pharmaceutical, pesticide, electronics, food, and chemical industries.

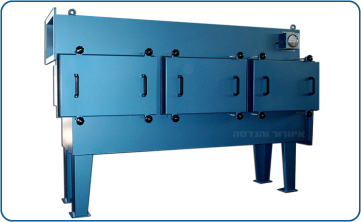

This filter is also available in a BIBO (BAG IN BAG OUT) configuration, which completely prevents worker exposure to hazardous materials during filter element replacement.
All parts of the filter are laser-cut, the filter body is fully welded, and constructed from steel or stainless steel sheets with thicknesses of 1.5–3 mm, providing mechanical strength, HEAVY DUTY construction, and long-term operational durability.
Filter replacement method
Periodic replacement of the filters according to the pressure drop. The filters are secured with a highly convenient eccentric mechanism and are supplied with integral SAFE CHANGE bags for the system.
Technical Specification
- Models : VHF-1, VHF-2, VHF-3, VHF-4, VHF-6.
- Flow rates : 500-24,000 m³/h.
Advantages for users of ventilation and engineering filters

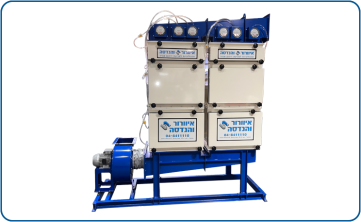

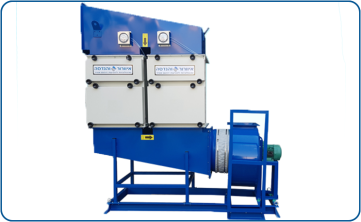

- Option for a configuration with an integral fan mounted on a common skid.
- Very high filtration efficiency.
- Continuous, reliable, and safe operation.
- HEAVY DUTY industrial construction.
- Design allows easy and convenient operation and maintenance.
- Ensures worker safety during filter replacement.
- Significant cost savings on spare parts.
