Uses and Features

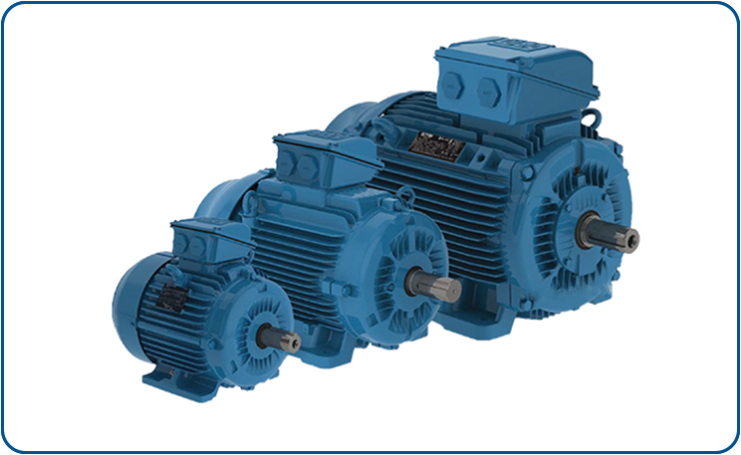

Three and single phase electric motors from the world’s leading manufacturers. At Ventilation & Engineering, we specialize in specifying and customizing motors to meet each client’s process requirements. These motors are primarily used to drive rotating equipment such as blowers, pumps, compressors, conveyors, and various drive systems. They offer high reliability, improved energy efficiency, and stable performance even under variable loads.
We supply and install three-phase motors in a wide range of powers, speeds, and voltages, fully customized to the client’s requirements and operating conditions.
Technical Specification
- Power range : 0.18 kW up to 500 kW.
- Speeds : 2,4,6,8 poles at 700, 1,000, 1,500, 3,000 rpm.
- Mounting types : B3 (foot), B5 (flange) and B35.
- Three-phase voltages : 230/400V, 400/690V, 50/60Hz.
- Explosion-proof motors : ZONE1, ZONE2, with guidance for selecting the appropriate motor for the specific process.
- Operation : Suitable for direct start or VFD control motors can be supplied with thermistors.
- Efficiency : Standard IE3, optional IE4.
- High-temperature operation : Motors available with H insulation or customized for operation up to 250°C for two hours.
- Protection : IP55 standard, higher levels optional.
- Special features : insulated bearings (recommended for large motors with VFD), reinforced NU bearings (for belt drive), special corrosion-resistant coatings up to C5M and motors customized for marine environments.
User Benefits
- High stock availability.
- Motors customized for the client’s process requirements.
- Option for refurbishment of large motors in our factory.
- Process durability ensured by HEAVY DUTY construction and robust materials.
- Meticulous engineering design tailored to the customer’s needs.
