Uses and Features

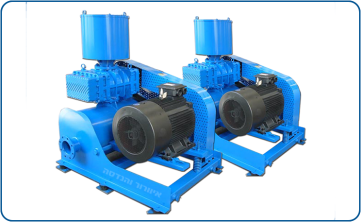

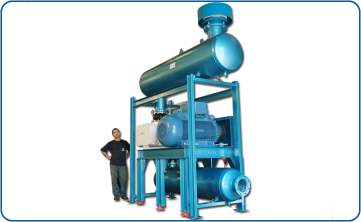

Three-lobe ROOTS BLOWER fan designed to operate at pressures of 980–100 millibar and vacuum up to 490 millibar. Wide airflow range of 9,000–100 m³/h. The fans are used for pneumatic conveying, ventilation of fish ponds and wastewater treatment facilities, vacuum systems, central dust extraction, and various industrial processes.
Technical Specification
- Drive : Belts.
- Construction material : Cast steel body.
- Electrical power : 10 - 250 HP.
- Vacuum : 100-490 [mbar].
- Pressure : 100-980 [mbar].
- Flow rate : 100-9,000 [m³/h].
- Motors : high-efficiency motors compatible with variable frequency drives; option for explosion-proof motors ZONE1 and ZONE2.
- Additional accessories : Silencer, vibration mounts, flexible couplings, inlet filter, pressure/vacuum relief valve, non-return valve, vacuum/pressure gauge, and control panel.
Advantages for users of penile pumps
- Extra heavy-duty industrial construction.
- Three lobes to reduce noise and pulsation.
- Includes automatic motor tensioner.
- Silencers and complementary accessories included as part of the unit.
- Separate oil reservoirs.
- Completely clean air.
- Attractive pricing.
