Uses and Features

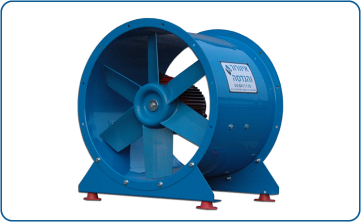

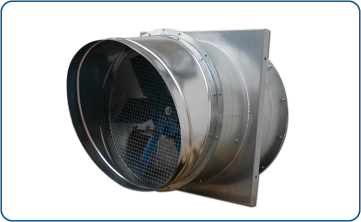

Axial fan designed for high-efficiency general ventilation applications and emergency smoke extraction in accordance with Standard 1001 Part 7. The fan is rated for operation at a temperature of 250°C for two hours.
Technical Specification
- Impeller diameter : 280-1,500 mm.

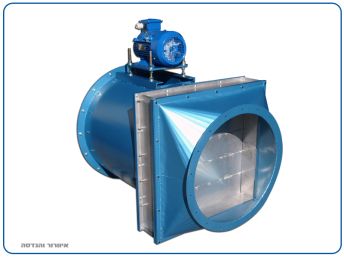

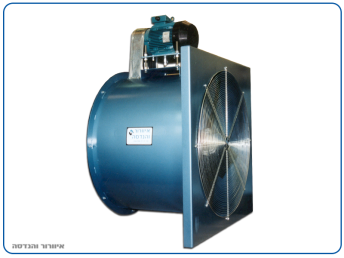

- Drive : direct, belt.
- Flow rates : 500-150,000 m³/h.
- Static pressure : 5-50 mmH₂O.

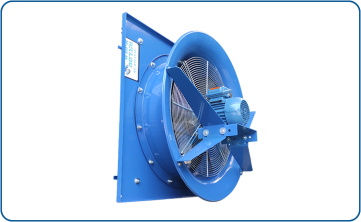

- Motors : High-efficiency motors suitable for operation with a variable frequency drive (VFD), with an option for explosion-proof motors for Zone 1 and Zone 2.
- The fan is manufactured from galvanized steel sheets, fully welded, and includes an aluminum impeller or steel impeller, providing an industrial-grade construction. The impeller is fully welded, resulting in high mechanical strength and long-term durability.

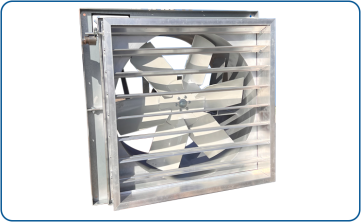

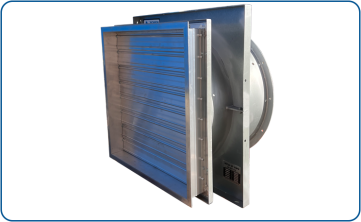

- Special additions : For each fan order, complementary accessories can be provided for wall installation, legs, silencers for noise reduction, protective grids, flexible connectors, non-return dampers, external electrical connection boxes, vibration dampers, spark protection, and inlet and outlet diameter transitions from the fan.
Advantages for users of ventilation fans and engineering
- Process durability due to HEAVY DUTY construction and durable materials.
- Option for special coating specifications up to C5M.
- Cost savings due to high efficiency and process durability.

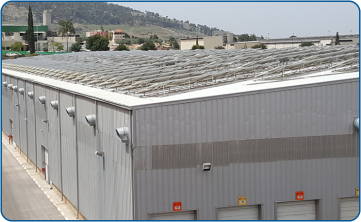

- Fan for the ventilation, smoke extraction, and air conditioning market in industrial buildings.
- Immediate availability from stock.
