Uses and Features

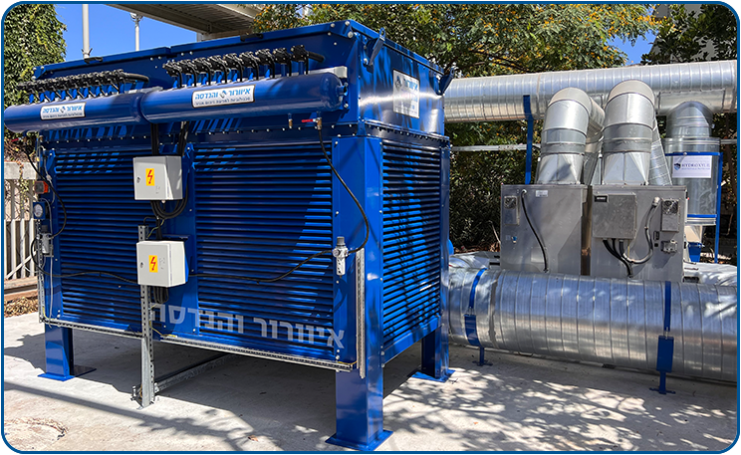

The CARTRIDGE INTAKE FILTER system is an automatic dust filter used for filtering dust and particles in production halls and for purifying atmospheric air supplied to clean production processes, compressors, vacuum pumps, dryers, and gas turbines.

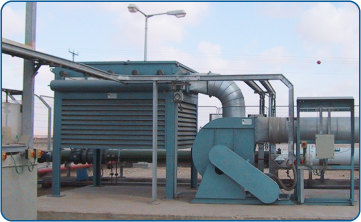

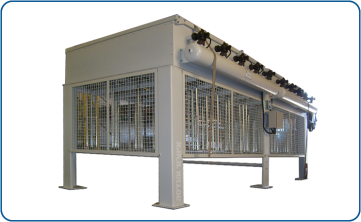

The filter is designed for intensive and continuous operation in process industries, food production, desalination facilities, chemical and pharmaceutical industries, gas turbines, and other applications.
The airflow regime in the filters is highly efficient, aiding in filter cleaning and maintaining a low pressure drop. The filter elements have exceptionally high filtration efficiency, ensuring compliance with the strictest emission standards: DIN 24184 CATEGORY M, BIGA, EN-60335-2-69, and all Clean Air Act requirements.
All filter components are laser-cut, the filter body is fully welded, and constructed from steel sheets / stainless steel 316 / stainless steel 304 with thicknesses of 3–5 mm, providing mechanical strength, EXTRA HEAVY DUTY construction, and long-term process durability.
Methods for cleaning filter elements
The ROTARY-JET (rotary lance) method is the most efficient cleaning system in the world. The rotary lance provides perfect air distribution along the entire filter, with uniform cleaning pressure that allows each pleat in the filter to be cleaned individually and thoroughly. Using the rotary lance significantly extends filter life, greatly reduces noise levels, and enables substantial savings (up to 70%) in compressed air consumption compared to other cleaning methods.
The PULSE-JET method with a GO-CO nozzle ensures efficient and uniform cleaning along the entire length of the filter during operation. This method prevents areas of the filter from remaining uncleaned, which can occur with conventional PULSE-JET cleaning.
Technical Specification
- Models : CIF-2 - CIF-60
- Flow rates : 500-50,000 m³/h.
- Filter fabrics : Reinforced polyester, anti-static, PTFE Teflon membrane.
- Structural materials : Galvanized steel, 304 stainless steel, and 316 stainless steel.
- Coating system : Electrostatic epoxy C3-C5 according to customer requirements.
Advantages for users of ventilation fans and engineering
- High filtration efficiency and resistance to high dust loads.
- Low pressure drop and energy savings.
- Reliable and safe continuous operation.
- EXTRA HEAVY DUTY industrial construction.
- Design allows for easy and convenient operation and maintenance.
- Significant cost savings on spare parts.
- Filter elements with German technology, washable with water.
