Uses and Features
The AFU air filtration and purification unit is a system for particle filtration using multiple stages of replaceable filters. The unit provides a convenient and cost-effective solution for filtering air from various contaminants.
AFU units have three main uses:
Supply of filtered air from the surrounding environment into office buildings, control rooms, and work areas to prevent Sick Building Syndrome.

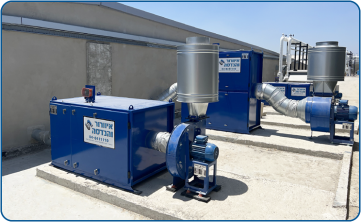

Air is drawn from the area where contaminants are generated and released back into the environment after filtration, mainly for applications where it is not possible to install a filter with automatic cleaning or where contaminant concentrations are low.
Air purification and circulation in conditioned areas where contaminants are emitted and it is necessary to maintain air conditioning, such as extraction from hoods and workstations.
Technical Specification
Models : For filtration only or combined with internal blowers.
Filtration levels : 20%, 30%, 40%, 60%, 80%, 99.97% - HEPA.
Capacities : 500-50,000 m³/h.
All parts of the filter are laser-cut, and the filter body is reinforced and constructed from steel sheets / stainless steel / galvanized sheets with thicknesses of 1.5–3 mm, providing mechanical strength, a HEAVY DUTY structure, and long-lasting durability. The unit body includes service doors with sealing and locking arrangements.
User benefits of ventilation and engineering filters
- Continuous, reliable, and safe operation
- Very high filtration efficiency
- HEAVY DUTY industrial construction
- Unit design allows easy and convenient operation and maintenance
- Significant cost savings on replacement parts
- Variety of filter materials tailored to the type of contaminant, using standard accessible filters
- Option for air filtration and purification within departments, returning treated air to the halls while maintaining air conditioning
